- Model: DA-E8
- Size: 600A DC
- Color:
- Weight:
What's Inside
Convenient charging: WeChat, Alipay, Mini Programs and other payment methods are supported.
Compatibility: Compatible with new and old GB communication protocols, applicable to a wide range of models.

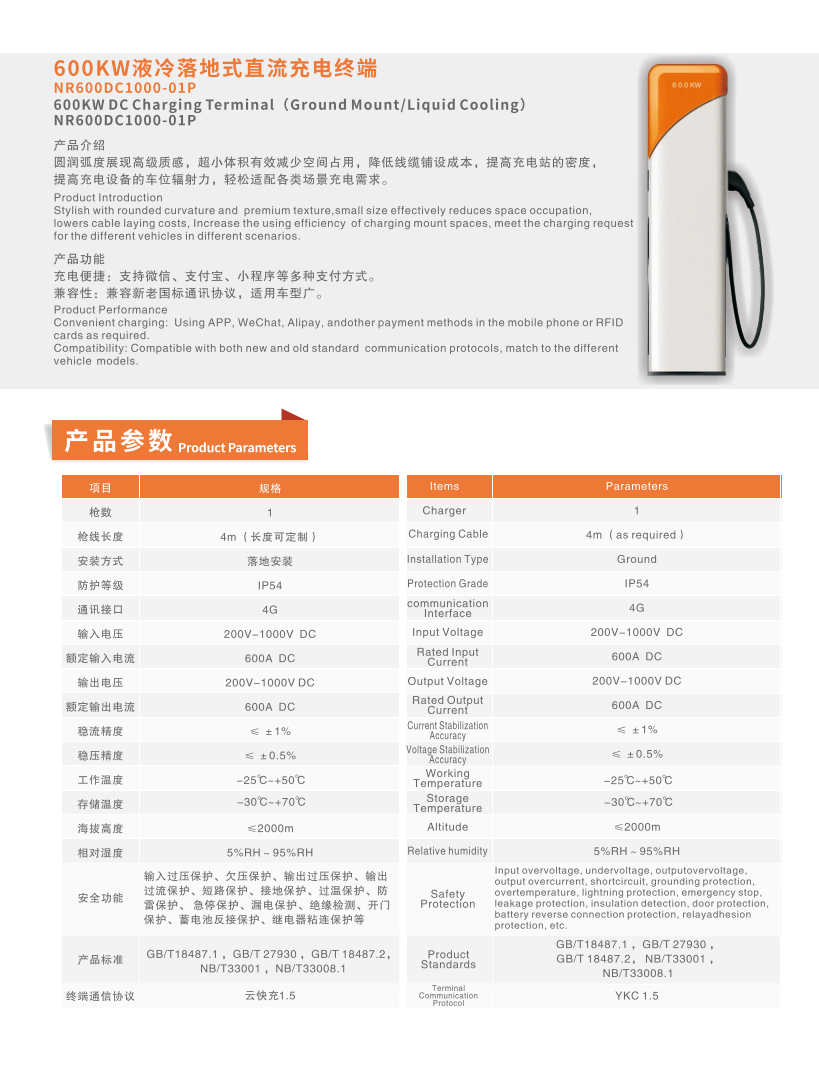

Specifications
| Parameter | |
|---|---|
| Charger | 1 |
| Charging Cable | 4m (as required) |
| Installation Type | Ground |
| Protection Grade | IP54 |
| communication Interface | 4G |
| Input Voltage | 200V–1000V DC |
| Rated Input Current | 600A DC |
| Output Voltage | 200V–1000V DC |
| Rated Output Current | 600A DC |
| Current Stabilization Accuracy | ≤ ±1% |
| Voltage Stabilization Accuracy | ≤ ±0.5% |
| Working Temperature | -25℃~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Altitude | ≤2000m |
| Relative humidity | 5%RH ~ 95%RH |
| Safety Protection | Input overvoltage, undervoltage, output overvoltage, output overcurrent, shortcircuit, grounding protection, overtemperature, lightning protection, emergency stop, leakage protection, insulation detection, door protection, battery reverse connection protection, relay adhesion protection, etc. |
| Product Standards | GB/T18487.1, GB/T 27930, GB/T 18487.2, NB/T33001, NB/T33008.1 |
| Terminal Communication Protocol | YKC 1.5 |
