- Model: DA-E1
- Size: 229*106*330mm
- Color: Black
- Weight: 3.5m
What's Inside
Strong compatibility: supports wall/column installation, integrated design, small size, easy installation; Ip54 protection level, dust-proof, waterproof and salt spray-proof.
Intelligent operation: card swiping, code scanning, online operation, online settlement, remote troubleshooting.
Smart and friendly: ultra-low running loss and standby power, power-off data storage, network disconnection and reconnection, perfect electrical safety protection.

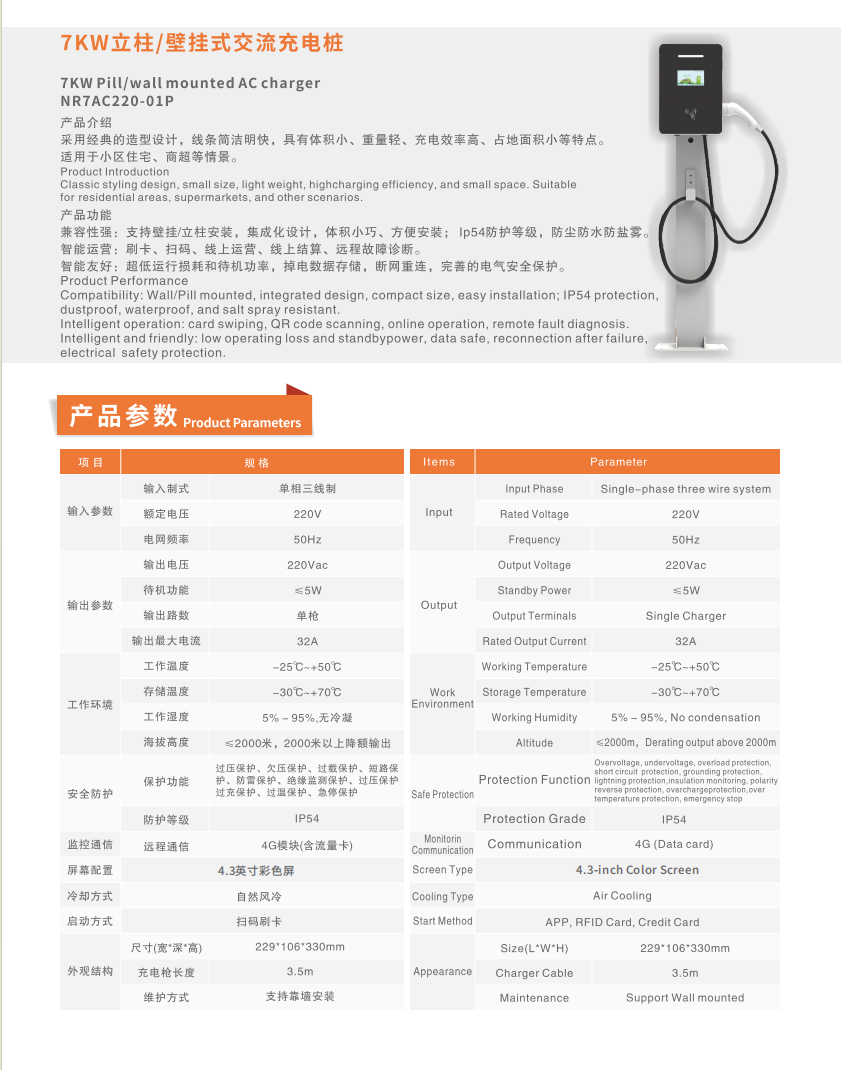

Specifications
| Parameter | |
|---|---|
| Input Phase | Single-phase three wire system |
| Rated Voltage | 220V |
| Frequency | 50Hz |
| Output Voltage | 220Vac |
| Standby Power | ≤5W |
| Output Terminals | Single Charger |
| Rated Output Current | 32A |
| Working Temperature | -25℃~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Working Humidity | 5% – 95%, No condensation |
| Altitude | ≤2000m, Derating output above 2000m |
| Protection Function | Overvoltage, undervoltage, overload protection, short circuit protection, grounding protection, lightning protection, insulation monitoring, polarity reverse protection, overcharge protection, over temperature protection, emergency stop |
| Protection Grade | IP54 |
| Communication | 4G (Data card) |
| Screen Type | 4.3-inch Color Screen |
| Cooling Type | Air Cooling |
| Start Method | APP, RFID Card, Credit Card |
| Size(L*W*H) | 229*106*330mm |
| Charger Cable | 3.5m |
| Maintenance | Support Wall mounted |
