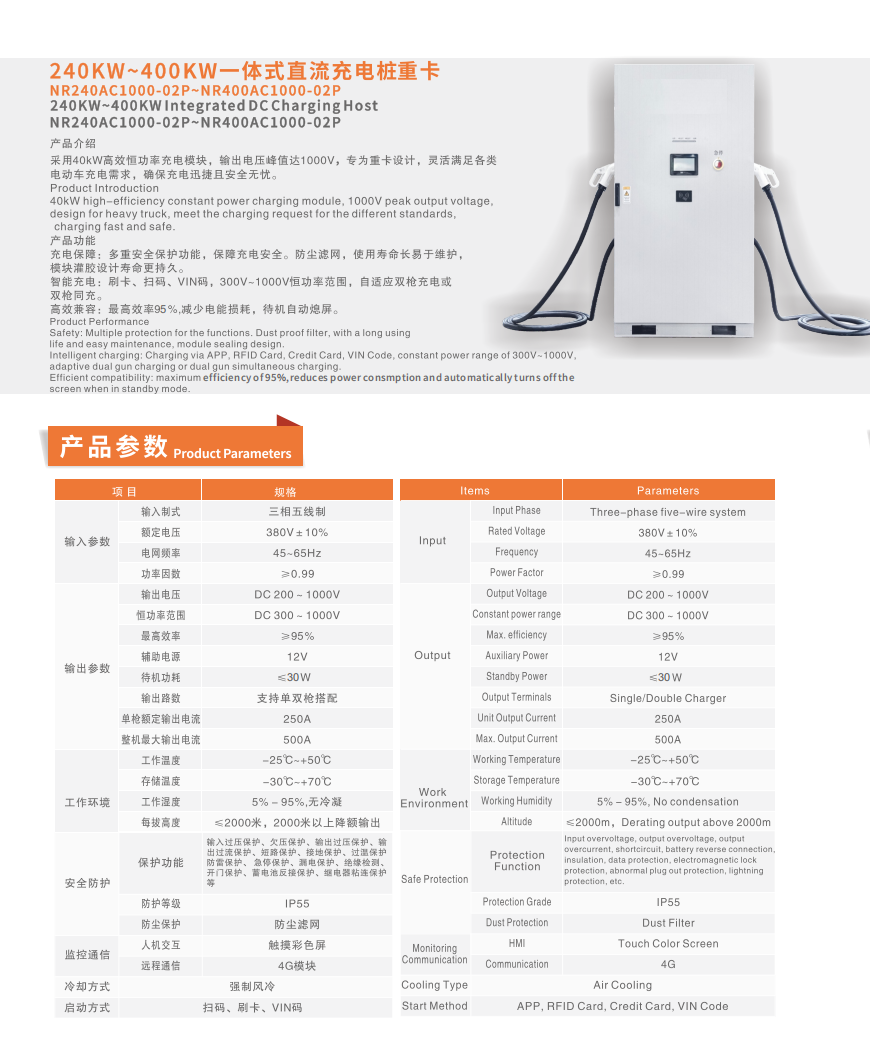

- Model: DA-E5
- Size: DC 200 ~ 1000V
- Color: white
- Weight:
What's Inside
Charging protection: Multiple safety protection functions to ensure charging safety. Dust-proof filter, long service life and easy maintenance,
The design life of the module filling is longer.
Smart charging: swipe card, scan code, Vin code, 300V ~ 1000V constant power range, adaptive dual gun charging or
Both guns were charged at the same time.
High efficiency and compatibility: up to 95% efficiency, reduce power loss, standby automatic screen off.
Specifications
| Parameter | |
|---|---|
| Input Phase | Three-phase five-wire system |
| Rated Voltage | 380V ±10% |
| Frequency | 45~65Hz |
| Power Factor | ≥0.99 |
| Output Voltage | DC 200 ~ 1000V |
| Constant power range | DC 300 ~ 1000V |
| Max. efficiency | ≥95% |
| Auxiliary Power | 12V |
| Standby Power | ≤30W |
| Output Terminals | Single/Double Charger |
| Unit Output Current | 250A |
| Max. Output Current | 500A |
| Working Temperature | -25℃~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Working Humidity | 5% – 95%, No condensation |
| Altitude | ≤2000m，Derating output above 2000m |
| Protection Function | Input overvoltage, output overvoltage, output overcurrent, shortcircuit, battery reverse connection, insulation, data protection, electromagnetic lock protection, abnormal plug out protection, lightning protection, etc. |
| Protection Grade | IP55 |
| Dust Protection | Dust Filter |
| HMI | Touch Color Screen |
| Communication | 4G |
| Cooling Type | Air Cooling |
| Start Method | APP, RFID Card, Credit Card, VIN Code |
