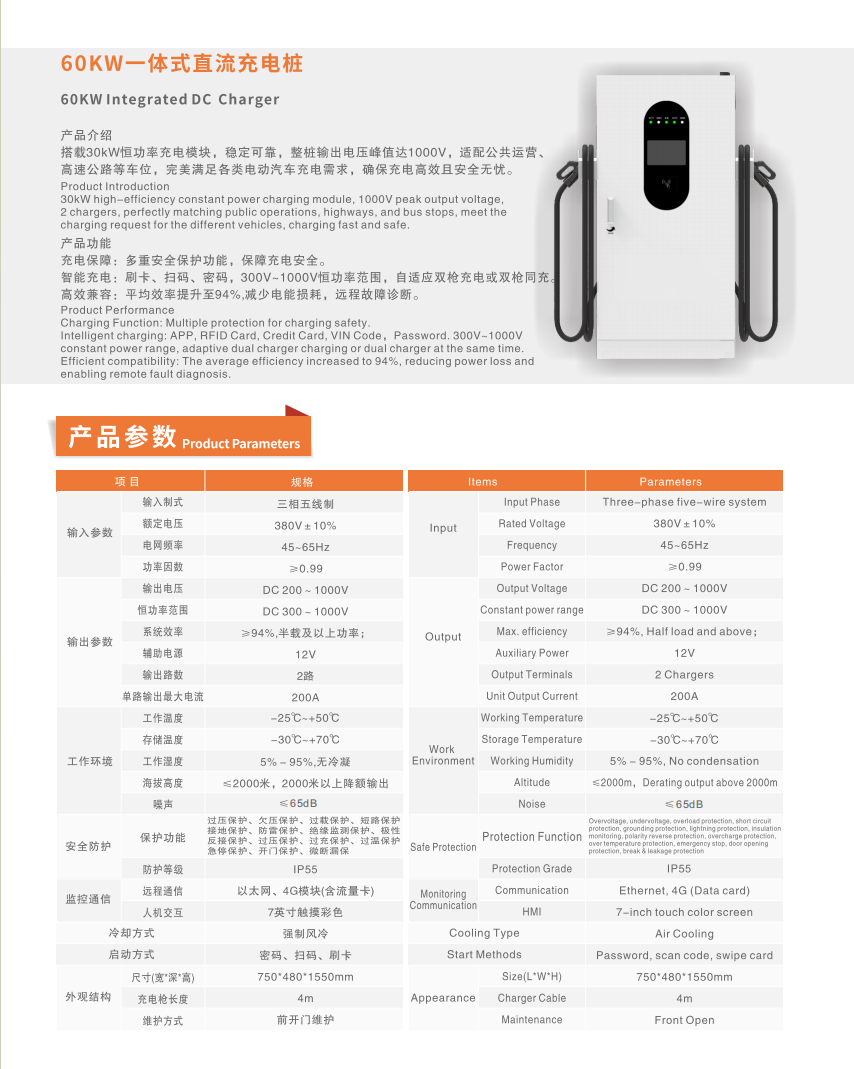

- Model: DA-E3
- Size: 750*480*1550mm
- Color: White
- Weight: 4m
What's Inside
Charging protection: Multiple safety protection functions to ensure charging safety.
Smart charging: swipe card, scan code, password, 300V-1000V constant power range, adaptive dual gun charging or dual gun charging
Efficient compatibility: Increased average efficiency to 94%, reduced power consumption, remote troubleshooting.
Specifications
| Parameter | |
|---|---|
| Input Phase | Three-phase five-wire system |
| Rated Voltage | 380V ±10% |
| Frequency | 45~65Hz |
| Power Factor | ≥0.99 |
| Output Voltage | DC 200 – 1000V |
| Constant power range | DC 300 – 1000V |
| Max. efficiency | ≥94%, Half load and above; |
| Auxiliary Power | 12V |
| Output Terminals | 2 Chargers |
| Unit Output Current | 200A |
| Working Temperature | -25℃~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Working Humidity | 5% – 95%, No condensation |
| Altitude | ≤2000m, Derating output above 2000m |
| Noise | ≤65dB |
| Protection Function | Overvoltage, undervoltage, overload protection, short circuit protection, grounding protection, lightning protection, insulation monitoring, polarity reverse protection, overcharge protection, over temperature protection, emergency stop, door opening protection, break & leakage protection |
| Protection Grade | IP55 |
| Communication | Ethernet, 4G (Data card) |
| HMI | 7-inch touch color screen |
| Cooling Type | Air Cooling |
| Start Methods | Password, scan code, swipe card |
| Size(L*W*H) | 750*480*1550mm |
| Charger Cable | 4m |
| Maintenance | Front Open |
