- Model: DA-E11
- Size: 80kW~440kW
- Color:
- Weight:
What's Inside
Charging protection: Multiple safety protection functions to ensure charging safety.
Smart charging: swipe card, scan code, remote start, POS payment, 300V ~ 1000V constant power range, adaptive
Double gun charging or double gun charging.
High efficiency and compatibility: Full load efficiency increased to more than 94.5%, reducing power consumption, remote troubleshooting.

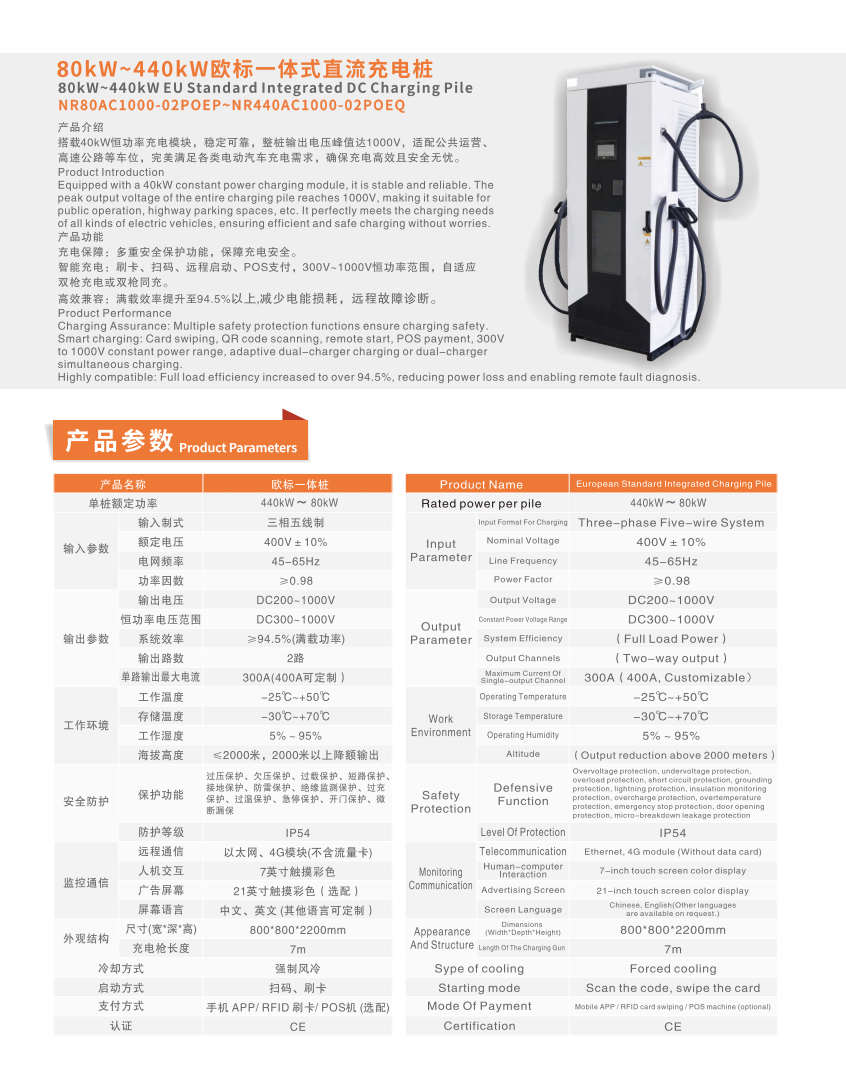

Specifications
| Parameter | |
|---|---|
| Product Name | European Standard Integrated Charging Pile |
| Rated power per pile | 440kW ~ 80kW |
| Input Format For Charging | Three-phase Five-wire System |
| Nominal Voltage | 400V ± 10% |
| Line Frequency | 45–65Hz |
| Power Factor | ≥0.98 |
| Output Voltage | DC200~1000V |
| Constant Power Voltage Range | DC300~1000V |
| System Efficiency | (Full Load Power) |
| Output Channels | (Two-way output) |
| Maximum Current Of Single-output Channel | 300A (400A, Customizable) |
| Operating Temperature | −25℃~+50℃ |
| Storage Temperature | −30℃~+70℃ |
| Operating Humidity | 5% ~ 95% |
| Altitude | (Output reduction above 2000 meters) |
| Defensive Function | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, lightning protection, insulation monitoring protection, overcharge protection, overtemperature protection, emergency stop protection, door opening protection, micro-breakdown leakage protection |
| Level Of Protection | IP54 |
| Telecommunication | Ethernet, 4G module (Without data card) |
| Human-computer Interaction | 7-inch touch screen color display |
| Advertising Screen | 21-inch touch screen color display |
| Screen Language | Chinese, English(Other languages are available on request.) |
| Dimensions (Width*Depth*Height) | 800*800*2200mm |
| Length Of The Charging Gun | 7m |
| Sype of cooling | Forced cooling |
| Starting mode | Scan the code, swipe the card |
| Mode Of Payment | Mobile APP / RFID card swiping / POS machine (optional) |
| Certification | CE |
