- Model: DA-E10
- Size: 1440KW
- Color: white
- Weight:
What's Inside
Safety: Multiple safety features for safe charging. Dust-proof filter, long service life, easy maintenance, module gluing design
Longer life.
Efficiency: Average efficiency increased to 96%, reducing power consumption.
Easy maintenance: Modular design for easy post-maintenance.

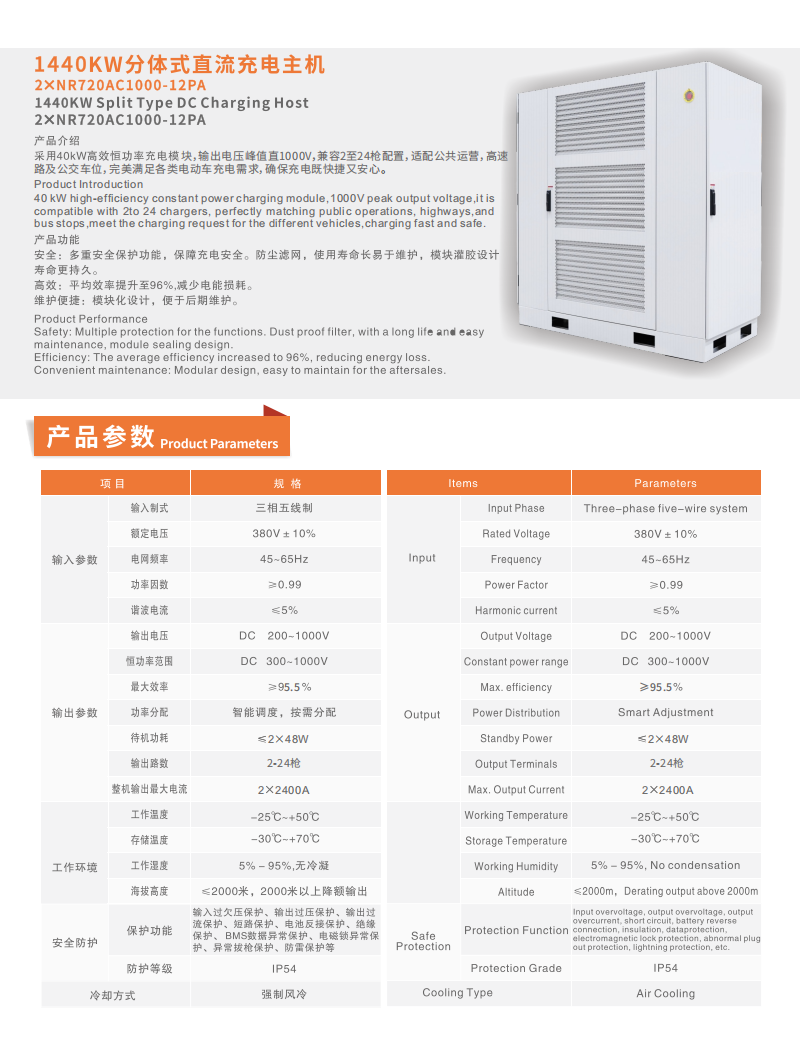

Specifications
| Parameter | |
|---|---|
| Input Phase | Three-phase five-wire system |
| Rated Voltage | 380V ±10% |
| Frequency | 45~65Hz |
| Power Factor | ≥0.99 |
| Harmonic current | ≤5% |
| Output Voltage | DC 200~1000V |
| Constant power range | DC 300~1000V |
| Max. efficiency | ≥95.5% |
| Power Distribution | Smart Adjustment |
| Standby Power | ≤2×48W |
| Output Terminals | 2-24 Chargers |
| Max. Output Current | 2×2400A |
| Working Temperature | -25℃~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Working Humidity | 5% – 95%, No condensation |
| Altitude | ≤2000m, Derating output above 2000m |
| Protection Function | Input overvoltage, output overvoltage, output overcurrent, short circuit, battery reverse connection, insulation, data protection, electromagnetic lock protection, abnormal plug out protection, lightning protection, etc. |
| Protection Grade | IP54 |
| Cooling Type | Air Cooling |
